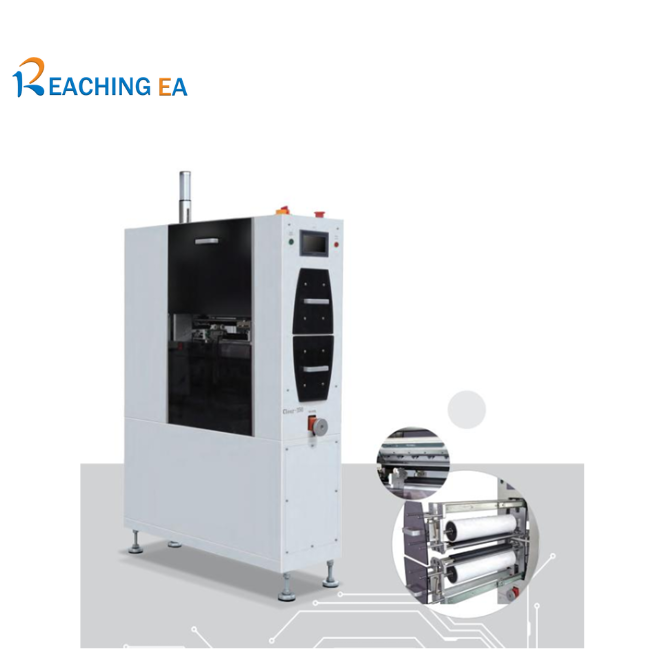

RT-CLT - In-Line Double-Sided PCB Cleaning System
The RT-CLT is a precision-engineered, in-line cleaning solution designed to eliminate surface impurities and static electricity from both sides of a PCB. By combining industrial-grade adhesive rollers with high-performance ion air knives, it ensures a pristine bonding surface, significantly reducing defects in high-precision assembly and marking processes.
Why Choose the RT-CLT?
Double-Sided High-Efficiency Cleaning
Upper and lower adhesive rollers
simultaneously remove dust and contaminants, ensuring thorough cleaning on
both sides of PCB boards.
User-Friendly Smart Control System
Integrated touchscreen HMI with
Panasonic PLC control delivers simple, intuitive, and reliable operation.
Rapid Static Neutralization
Integrated with Japanese Keyence ion air knives at the exit to
neutralize static
charges to below 100V, protecting sensitive components from ESD damage.
Flexible Operation Mode
Optional straight-through (bypass) mode available to suit
different production requirements.
Real-Time Monitoring
Built-in counter and digital speed display provide clear
visibility of operating status.
Maintenance Reminder Function
Automatic adhesive roller replacement cycle
reminders help ensure consistent cleaning performance.
Ease of Maintenance
Designed with a slide-out drawer for adhesive paper rolls,
making it easy for operators to replace soiled paper in seconds.
Stable & Precise Pneumatic Control
Both active and passive adhesive rollers are
pneumatically controlled for smooth, stable, and accurate operation.
Technical Specification
|
Feature |
Specification |
|
Control Method |
Panasonic PLC + HMI Touch Screen Panel |
|
Cleaning Position |
PCB Board, Double-Sided Cleaning |
|
Cleaning Method |
Upper/Lower Sticky Dust Rollers + Ion Air Knives |
|
Sticky Roller Dimensions |
ø25mm * 645MM, ø25mm * 615MM |
|
Sticky Paper Roll Dimensions |
ø95mm * 470MM |
|
Substrate Passing Width |
50MM - 460MM |
|
Substrate Passing Length |
150MM - 450MM |
|
Conveyance Height |
900MM ± 20MM |
|
Conveyance Direction |
Right → Left / Left → Right (Specify when ordering) |
|
Substrate Conveyance Speed |
0 - 9 m/min (Adjustable) |
|
Static Elimination Device |
Ion Air Knife (Mounted above exit) (Keyence Brand) |
|
Rail Width Adjustment Method |
Manual (Adjust via handwheel on front of equipment) |
|
Board Handling Interface |
Equipped with "Board Request" & "Board Ready" signals |
|
Signal Standard |
SMEMA Interface Signals |
|
Signal Lamp |
Three-Color Indicator Light |
|
Buzzer |
Yes |
|
Equipment Exterior Dimensions |
L300mm * W940mm * H1300mm |
|
Guide Rail Length |
300mm |
|
Total Equipment Weight |
Approx. 90 KG |
|
Equipment Power Supply |
Voltage: AC220V, Power: 500W |
|
Equipment Air Source |
0.6Mpa |
