Introduction

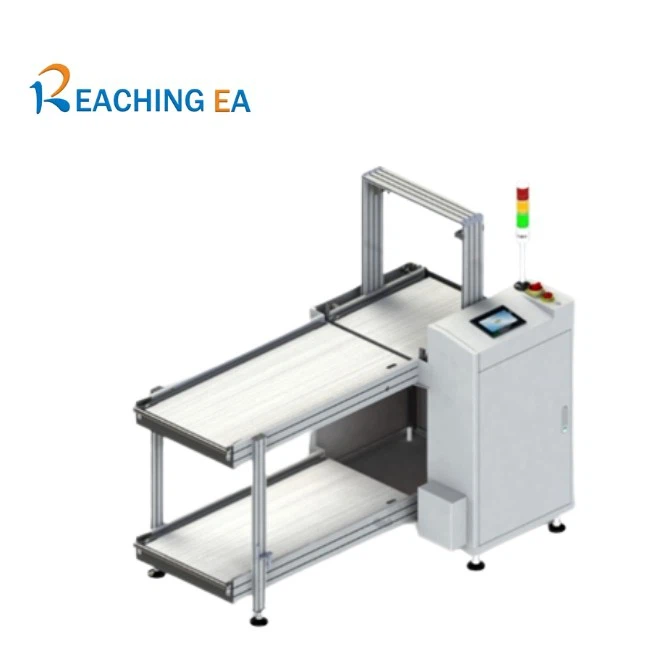

The REA PCB SMT Magazine Loader (BL Series) is purpose-built for the start of SMT production lines, automatically transferring PCBs from magazines into the line one by one upon receiving downstream signals. Designed for operational efficiency and precise handling, it ensures smooth magazine transitions and reliable board feeding for high-speed automation environments.

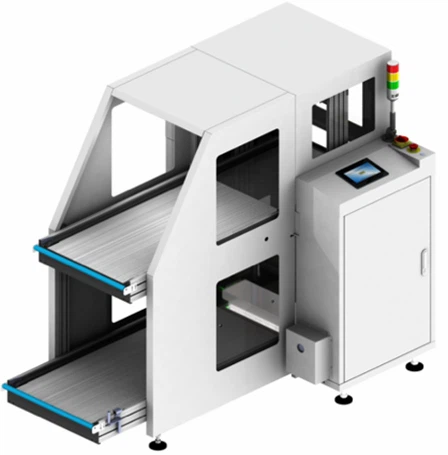

With Safety Cover
Available Options
1. Safety Cover
2. Universal magazine
(250, 330,390 or 460mm)
3. Auto width adjustment
|
AVAILABLE MODELS & SIZES |
|||
|
Model No. |
PCB Size |
Magazine Size |
Machine Size |
|
NGUL9250 |
50*50~L350*W250mm |
L355*W320*H536mm |
L1360*W766*H1200mm |
|
NGUL9330 |
50*50~L460*W330mm |
L460*W400*H570mm |
L1650*W845*H1200mm |
|
NGUL9390 |
50*50~L535*W390mm |
L535*W460*H570mm |
L1760*W906*H1200mm |
|
NGUL9460 |
50*50~L535*W460mm |
L535*W530*H570mm |
L1760*W975*H1200mm |
Product data is for reference only. Please contact us to confirm the latest information.
Key features
Automated PCB Loading:
Sends out PCBs one by one from magazines upon signal from downstream equipment.
Magazine Compatibility:
Input, output, and lift stations each support one magazine for streamlined handling.
Configurable Lift Pitch:
Supports lift pitches of 10mm, 20mm, 30mm, or 40mm to match various magazine types.
Directional Flexibility:
Fixed front transport direction with configurable left-to-right or right-to-left flow.
Industrial Build:
Durable 3.0mm welded steel frame with PC-coated finish for long-lasting performance.
Precision Control System:
Integrated Omron PLC and Panasonic sensors ensure accurate, stable operation.
Youtube video
|
SPECIFICATIONS |
|||
|
Item |
Main Specification |
||
|
Transport direction: |
Front fixed, from left to right or right to left (option) |
||
|
PCB Top/Botom Clearance: |
20/20mm |
||
|
PCB Edge: |
3mm |
||
|
Transport Height: |
900+50/-20mm |
||
|
Lift Motor: |
ZD 120W motor with brake |
||
|
Transport Motor: |
ZD 15W fixed speed motor |
||
|
PCB Loading Weight: |
Under 2kg |
||
|
PCB Loading: |
Upper to Bottom (50-1) |
||
|
Number of Magazines: |
Top 2 magazines, Bottom 2 magazines |
||
|
AC Power: |
AC220V/50-60HZ(single electric box control) |
||
|
Lift Platform: |
Ball screw lift with all-in-one aluminum platform |
||
|
Control System: |
Omron PLC and Panasonic sensor |
||
|
Control Panel: |
Weinview touch screen |
||
|
Frameworks: |
3.0mm welded metal sheet, with PC color coating on the surface |
||
|
Communication: |
Standard SMEMA |
||
Product data is for reference only. Please contact us to confirm the latest information.
