Introduction

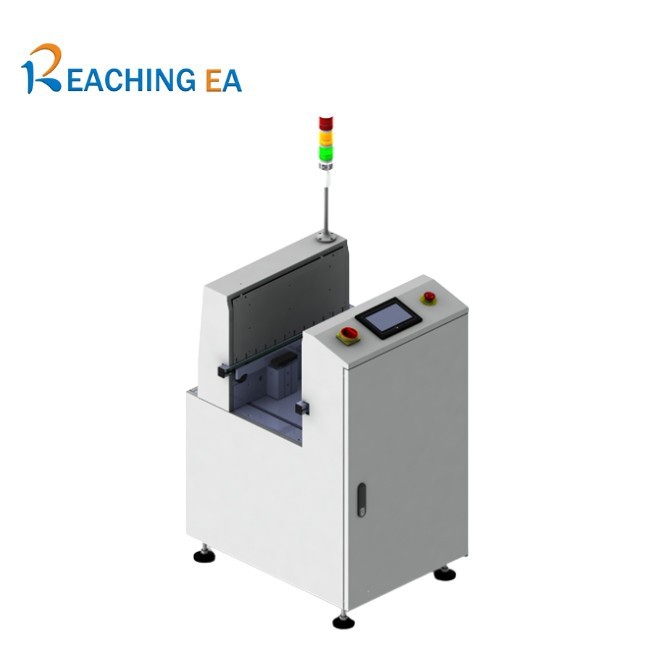

The REA SMT Destacker are designed to automate the start of the SMT production line by feeding bare PCBs one at a time to the downstream equipment. Built with high-strength frameworks, intelligent motion control, and adjustable transfer height, these machines improve line stability and efficiency. Their modular structure and smart control options make them ideal for scalable production environments.
With Safety Cover
Available Options
1. Safety Cover
2. Auto width adjustment
3. Ethernet line width adjustment
|
AVAILABLE MODELS & SIZES |
||
|
Model No. |
PCB Size |
Machine Size |
|
DSK9350 |
L60*W60~L460*W350mm |
(L)500x(W)980x(H)1250mm |
|
DSK9460 |
L60*W60~L535*W460mm |
(L)600x(W)1190x(H)1250mm |
Product data is for reference only. Please contact us to confirm the latest information.
key features
- Efficiently feeds bare boards one at a time to kick off the SMT production line automatically.
- Responds to downstream machine signals for seamless, synchronized board delivery.
- Optimized 180mm stack height allows space-saving buffer capacity without bulk.
- Easily connects to existing SMT systems via standard communication protocols.
- Supports optional add-ons like auto width adjustment and safety cover for enhanced versatility and operator safety.
Video
|
SPECIFICATION |
||
|
Item |
Main Specification |
|
|
Transport direction: |
Front fixed, from left to right or right to left (option) |
|
|
AC Power: |
AC220V/50-60HZ (single electric box control) |
|
|
PCB Edge: |
3mm |
|
|
Transport Height: |
900+50/-20mm |
|
|
Transport Rail: |
Special aluminum rail, use 4.8mm flat belt for transfering |
|
|
PCB Loading Weight: |
Under 2kg |
|
|
Pusher Cylinder: |
Each AIRTAC single axis cylinder on both right and left side |
|
|
Roof Cylinder: |
Each AIRTAC dual axis cylinder on both right and left side |
|
|
Transport Motor: |
Step motor |
|
|
Control System: |
Omron PLC and Panasonic sensor |
|
|
Control Panel: |
Weinview touch screen |
|
|
Frameworks: |
3.0mm welded metal sheet, with PC color coating on the surface |
|
|
Communication: |
Standard SMEMA |
|
