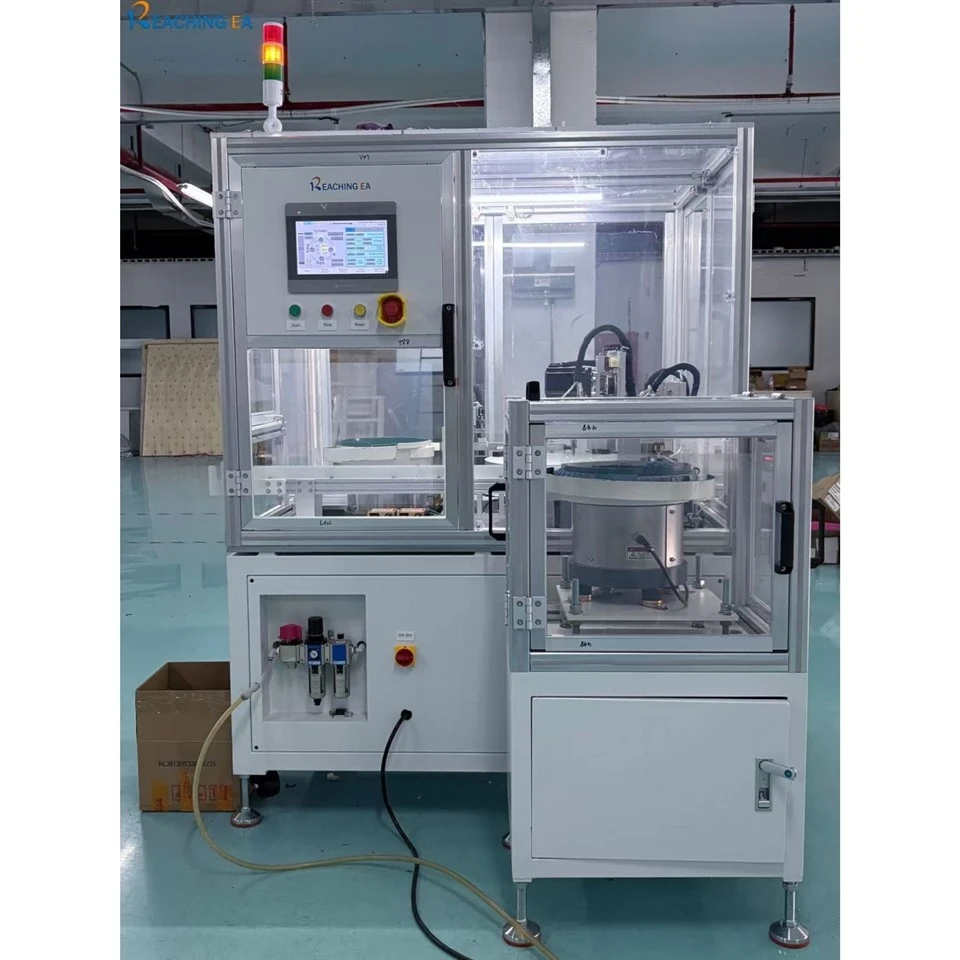

PPN Sub Assembly Machine

PPNSAM

The PPNSUB Assembly Machine is purpose-built for the automated assembly of housings and inner plates into finished sub-assemblies. Four independent modules - Housing Loading, Inner Plate, Pressing and Discharge - work around a precision turntable, with bowl feeders and linear vibratory feeders supplying parts. Controlled by an IEC 61131-3 compliant PLC and protected by a hardwired Emergency Stop safety circuit with PLC logic monitoring, it delivers reliable, error-proofed assembly for high-speed automation environments.

The PPNSAM integrates feeding, transfer, positioning, pressing and discharge operations into one automated assembly system. The four functional modules operate around the turntable, while bowl feeders and linear vibratory feeders provide continuous component supply. The system also supports automatic positioning, homing, product memory and station management.

• Housing automatic feeding
• Inner plate automatic feeding
• Automatic transfer and positioning
• Automatic pressing
• Turntable automatic positioning
• Automatic homing

• Automated Assembly: Integrates feeding, transfer, pressing and discharge operations.
• Multi-Module Design: Four functional modules operate with the turntable system.
• Stable Feeding: Bowl feeders and linear vibratory feeders provide continuous component supply.
• Precision Positioning: Turntable supports 90° incremental station positioning.
• Intelligent PLC Control: Includes I/O mapping, alarm diagnosis, state-machine control and process management.
• HMI Interface: Provides Manual/Auto operation, parameter setting, alarms, I/O monitoring and production information.
• Error-Proofing: Operating conditions are checked before mechanism movements are executed.
• Safety Protection: Hardwired Emergency Stop circuit with Safety Relay plus PLC monitoring and safety-door interlocking.

• Housing Loading Module: Feeds and transfers housings from the bowl feeder to the turntable.
• Inner Plate Module: Feeds and transfers inner plates to the corresponding station.
• Pressing Module: Performs pressing and monitors pressing conditions.
• Discharge Module: Transfers finished products and manages NG discharge.
