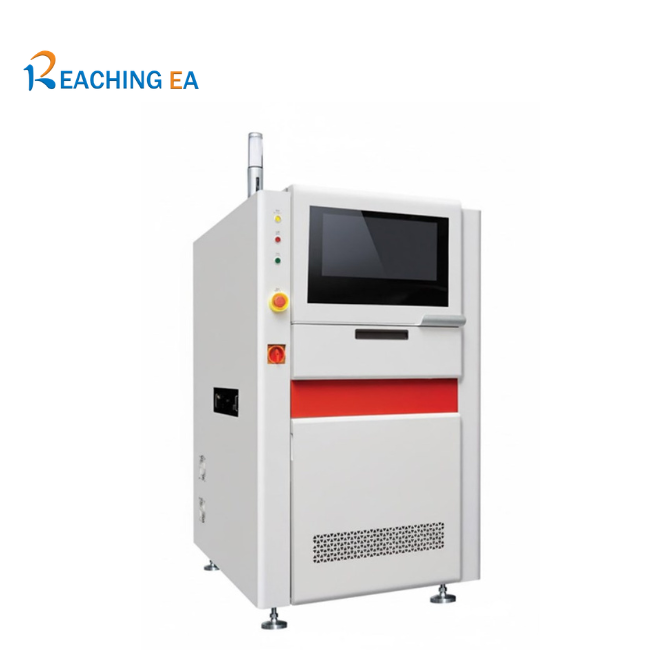

Laser Marking Machine

RC-6 Laser Engraving Machine is engineered for permanent, high-accuracy marking of PCBs, electronic components, and various industrial materials. Utilizing advanced laser technology, it engraves codes, text, logos, and graphics with precision up to ±0.02 mm, ensuring consistent readability, process reliability, and full traceability throughout the production lifecycle.

• High-precision alignment with advanced CCD vision and stable mark recognition.
• Large-format printing capability supporting oversized PCB applications.
• Rigid and stable platform to reduce board deformation and improve print quality.
• Intelligent control system with real-time monitoring and easy-to-use interface.
• Fast automatic cleaning system (dry/wet/vacuum) to maintain stencil quality.
• Modular design for easy maintenance and reduced downtime.
• MES/traceability compatible for Industry 4.0 production lines.
• High-speed and repeatable operation to maximize throughput.

Visual Template Editing with Real-Time PCB Display

Edit directly on the live PCB layout. Adjust marking area, text position, spacing, and more with ease. User-friendly, fast, and compatible with multiple barcode standards. Templates can be created in about 3 minutes.

Fully Visual CCDBased Editing

All edits are performed using live CCD camera feedback, making operations intuitive, simple, and convenient.

Duplicate Marking Prevention

Builtin function to avoid remarking the same barcode information, ensuring data uniqueness.

Barcode Array Function

Enables quick and easy marking of multiple boards or multiple barcode types on a single PCB. Ideal for multipanel or multispecification labeling.

DragandDrop Barcode Placement

Simply drag barcodes to any position on the PCB. The system marks in realtime at the dragged location - no need to measure coordinates or edit coordinate data manually. Adjustments are made visually by dragging the barcode to the desired spot, making operation extremely intuitive.

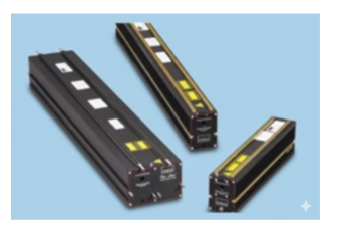

CO₂ Laser

Laser Model: Synrad 48-Series

Features: Rugged & Reliable

Global Adoption: Used in over 50,000 Installation Worldwide

Service Life: Exceeds 40,000 hours

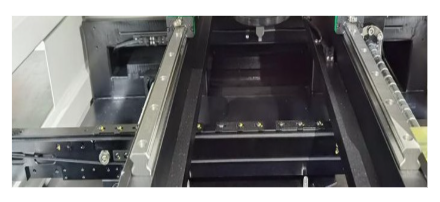

Conveyor Rail System

Equipped with a stepper motor and lead screw mechanism, the system provides precise board-width adjustments and accurate Yaxis positioning. The rail workstation features a top-plate device to ensure workpieces of varying thicknesses are perfectly aligned with the laser focal plane, delivering consistent, high-quality marking every time.

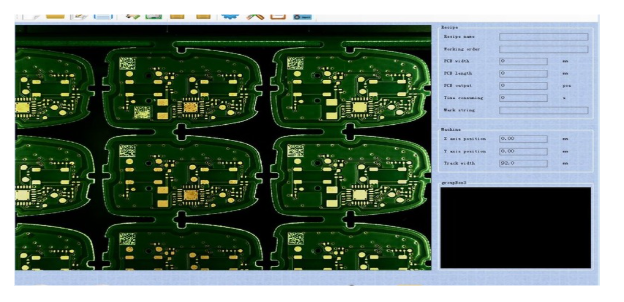

Operating Software

Intuitive, user-friendly graphical interface with full functionality for simple and efficient operation. Supports Gerber file import for fast programming and offers an optional offline image editing mode for flexible editing and debugging anytime.

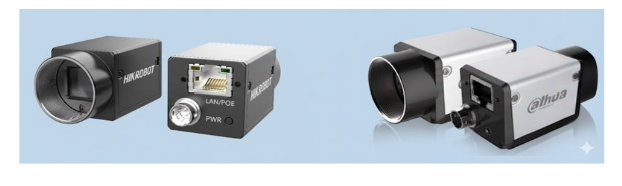

CCD System

High-resolution color industrial camera + visual image processing system + CCD positioning system + barcode reading and inspection system.

Precision That Sets You Apart

An ultra-fine, focused laser beam delivers exceptional marking accuracy, removing material point by point with knife-like precision. The non-contact process eliminates mechanical stress or surface damage, while the minimal heat-affected zone enables intricate, high-quality marking beyond the capabilities of conventional methods.

Permanent Identification & Brand Protection

Laser-marked codes, text, and symbols are permanent and resistant to wear, corrosion, and harsh environments. Unique serial numbers and traceability codes ensure easy product identification and tracking. The high precision and complexity of laser marking make it extremely difficult to replicate, providing outstanding anti-counterfeiting protection.

Faster Production, Lower Costs

Laser marking requires only electrical power-no consumables, tools, or additional equipment. Fully computer-controlled automation ensures fast, stable operation with minimal labor, significantly reducing operating costs while maximizing production efficiency.

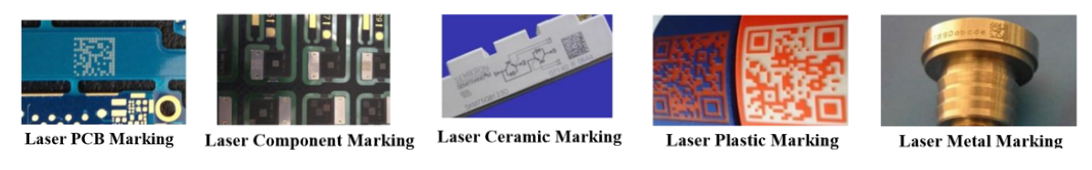

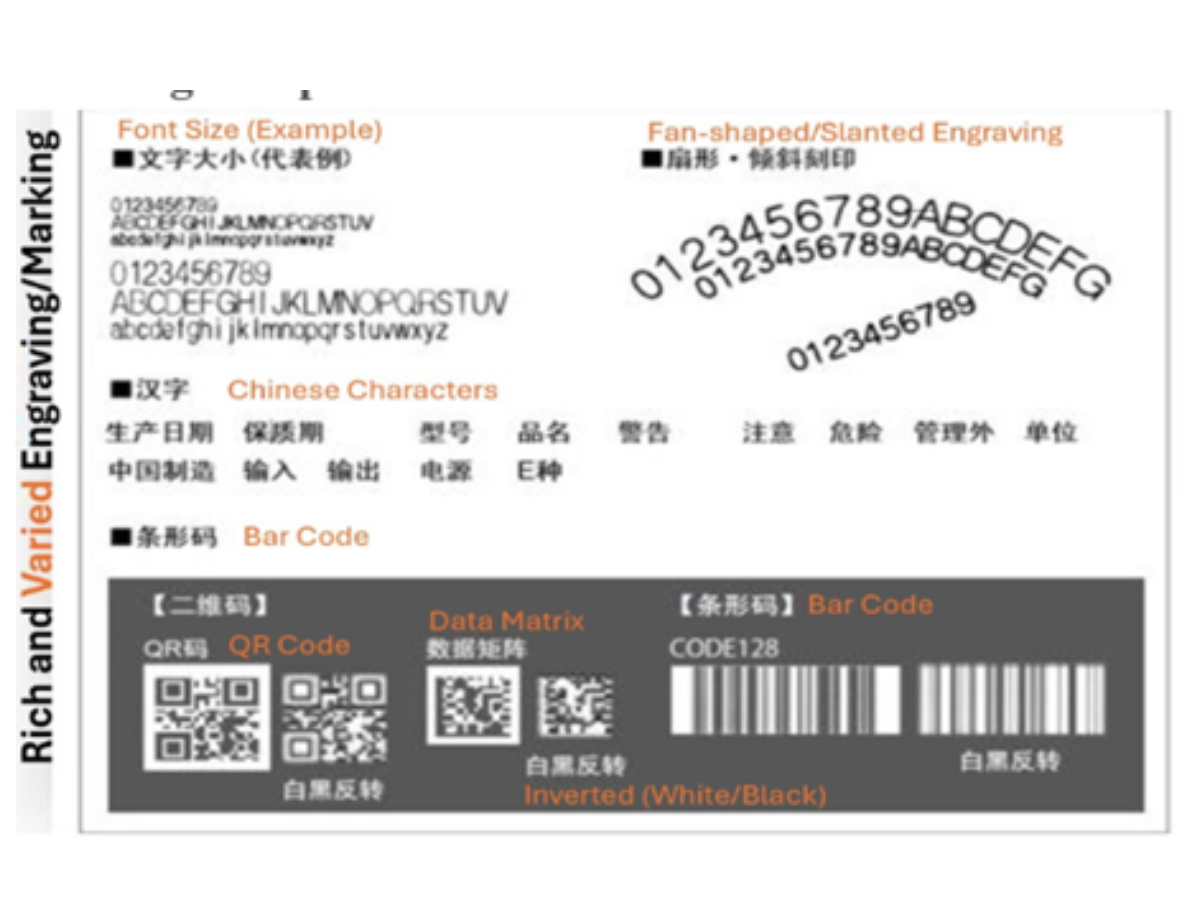

Representative Marking Examples

Clean, Green & Globally Compliant

Laser processing is a clean, non-toxic, and environmentally responsible solution. It meets international environmental and export regulations, eliminating the restrictions associated with screen printing and chemical etching. With zero consumable waste and no material backlog, laser marking supports sustainable, future-ready manufacturing.

R6-C Laser Engraving Machine
